Install Guides for After-Market Gateway by Manufacturer (Version 3)
Install guides for the after-market advanced gateway with different harnesses are listed in this section by manufacturer of the control panel/ controller. Articles in this section are for Version 3 hardware.
Hardware | Version 3 Part Numbers |
|---|---|

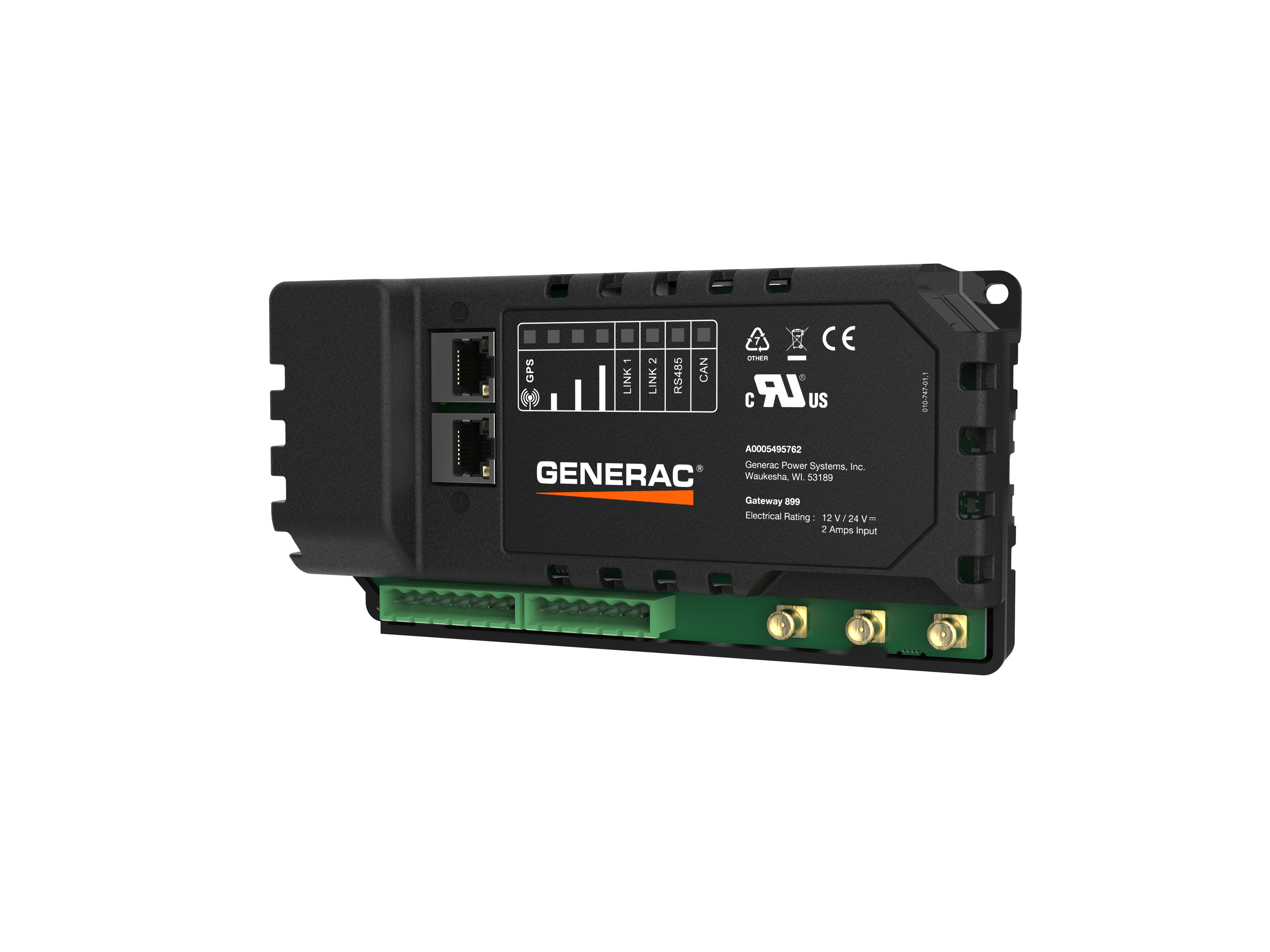

GL899-AFTERMARKET GATEWAY KIT | A0009887841 |
GL899-PARTIAL POWER HARNESS; provides fuse protected DC power to gateway | A0009887769 |
GL899-PARTIAL COMM HARNESS; provides RS485 and CAN J1939 connections | A0009887770 |
GL899-PARTIAL RETROFIT HARNESS; provides fused power and GPIO connections | A0009887772 |
GL899-COMM ACCESSORIES | A0009887771 |
