DSE 73XX (V3)
The Generac Link Gateway (part# A0009887841) connects to the DSE 73xx series controller using the RS485 modbus connection and will require the A0009887769 (GL899-PARTIAL POWER HARNESS; provides fuse protected DC power to gateway) and the A0009887770 (GL899-PARTIAL COMM HARNESS; provides RS485 and CAN J1939 connections) harness.

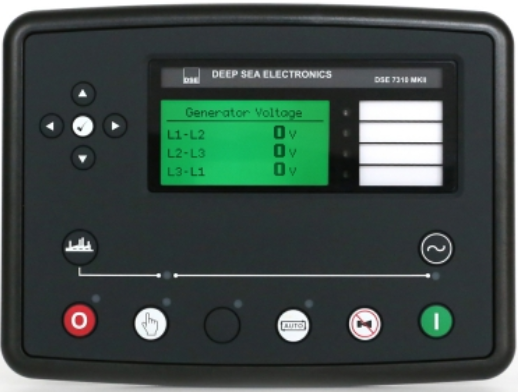

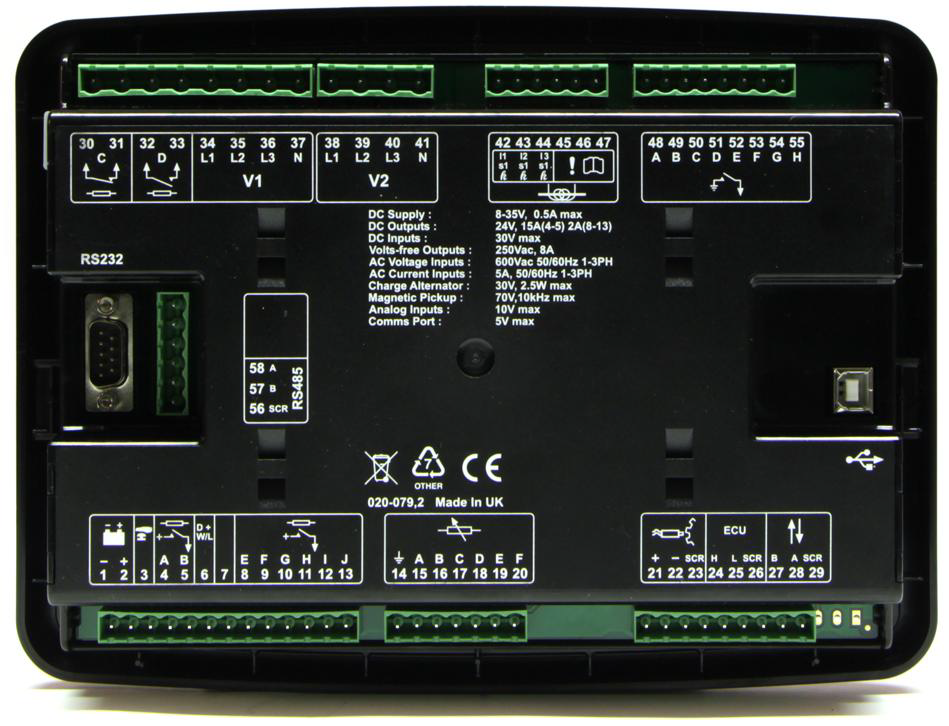

Deep Sea (DSE) 7300 Control Panel Display
Modbus Communication Settings and Notes
Address: 1 |
Baud Rate: 9600 |
If different settings are required, please contact Support.
Equipment Connection Details
Generac Gateway Side Terminations | Description | Harness & Wire Color | Equipment Side Terminations |
|---|---|---|---|
1 | DC- | A0009887769 Red | 2 |
2 | DC+ | A0009887769 Black | 1 |
8 | Data + | A0009887770 Orange / White | RS485 A+ |
9 | Data - | A0009887770 White / Orange | RS485 B- |
10 | Data GND | A0009887770 Blue / White | RS485 SCR |
Generac Link Self-Deploy Controller Profile Name: Deep Sea 73xx
Gateway Connection Ports
Pin | Connector | Description |
1 | A | Plant Supply –ve |
2 | Plant Supply +ve | |
3 | Digital Output A | |
4 | Digital Output B | |
5 | Flexible Sender Common | |
6 | Flexible Sender A | |
7 | Flexible Sender B | |
1 | B
| RS485 A |
2 | RS485 B | |
3 | RS485 Screen | |
4 | CAN H | |
5 | CAN L | |
6 | CAN Screen |
