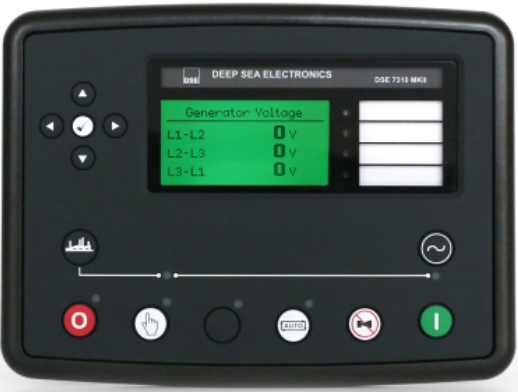

This topic is the install guide for aftermarket gateway (part# G0097460) with the universal harness (part# A0006648426) when utilizing the Deep Sea Electronics (DSE) 7300 control panel.
Modbus Communication Settings and Notes
|
Address: 1 |
|
Baud Rate: 9600 |
If different settings are required, please contact Support.
Equipment Connection Details

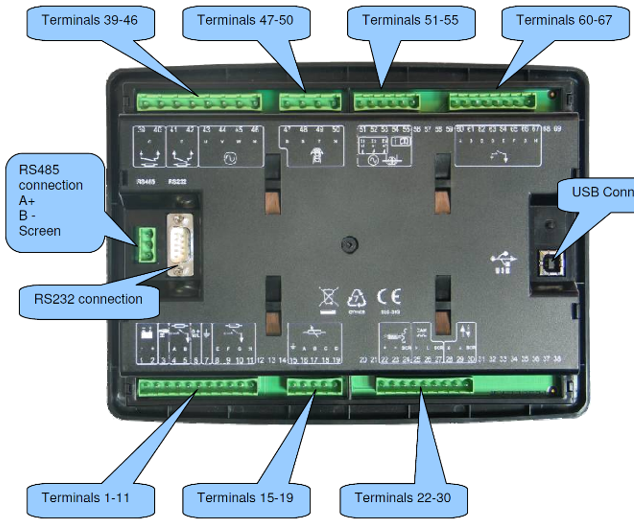

Generac Gateway Side Terminations
|
Description
|
Harness Wire Color
|
Equipment Side Terminations
|
|---|---|---|---|
|
+ |
DC+ |
Red |
2 |
|
- |
DC- |
Black |
1 |
|
A2 |
Data + |
Blue / White |
RS485 A+ |
|
B2 |
Data - |
White / Blue |
RS485 B- |
|
GND |
Data GND |
White / Green |
RS485 SCR |
|
Harness Relay #1 |
COM |
Blue |
2-Wire Start |
|
N/O |
White / Blue |
Gateway Connection Ports
