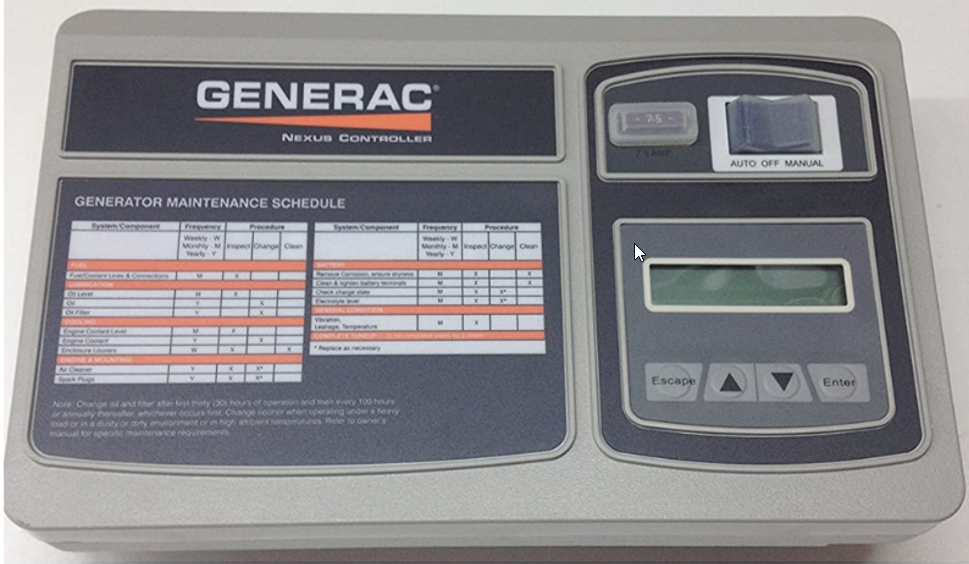

This topic is the install guide for the after-market gateway (part# G0097460) with the universal harness (part# A0006648426) utilizing the Generac Nexus Controller.
Equipment Connection Details
Generac Gateway Side Terminations
|
Description
|
Harness Wire Color
|
Equipment Side Terminations
|
|---|---|---|---|
|
+ |
DC+ |
Red |
B+ |
|
- |
DC- |
Black |
B- |
|
Pin 15 |
Engine Running |
Purple |
Fuel Solenoid + |
|
Pin 17 |
Common Alarm |
White |
Terminal 210
|
|
Harness Relay #1 |
COM |
Blue |
2-Wire Start |
|
N/O |
White / Blue |
Gateway Connection Ports
Check out our knowledge base and support center for information on any technical questions.
