Generac Evolution Hardwired I/O

This topic is the install guide for the after-market gateway (part# G0097460) with the universal harness (part# A0006648426) utilizing the Generac Evolution control panel.

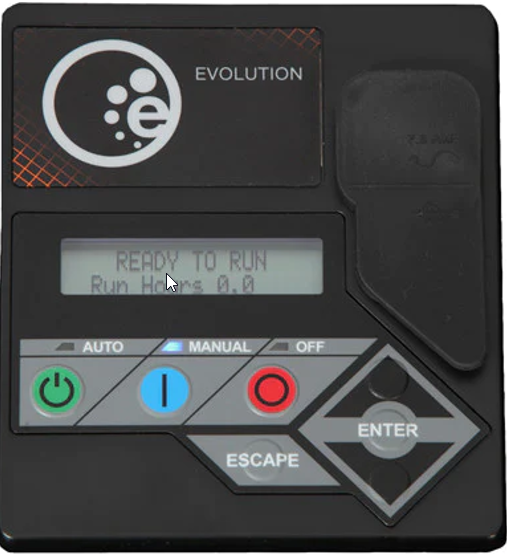

Panel Display for Evolution (Air Cooled) Control Panel

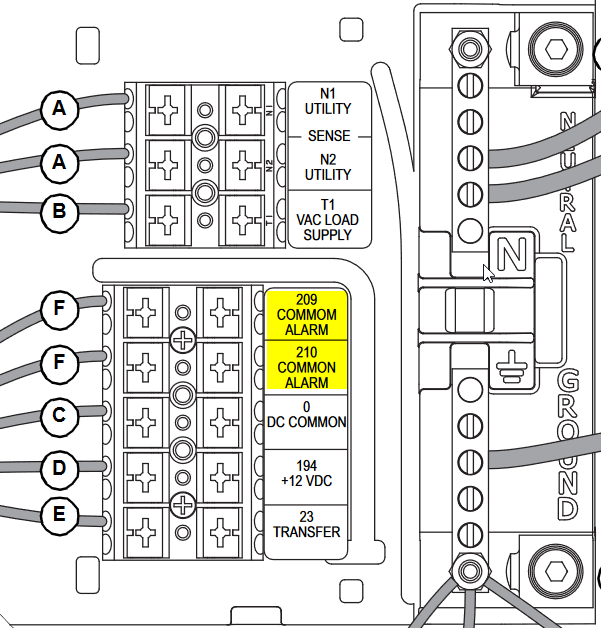

Evolution Control Wiring (60Hz) 2016 and Older (Behind Control Board)

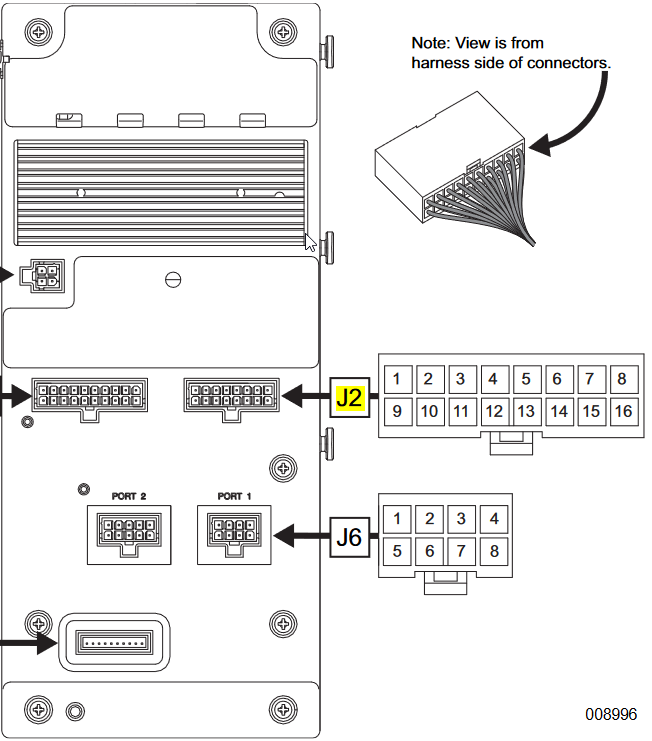

Evolution 1.0 and 2.0 Controller Connections

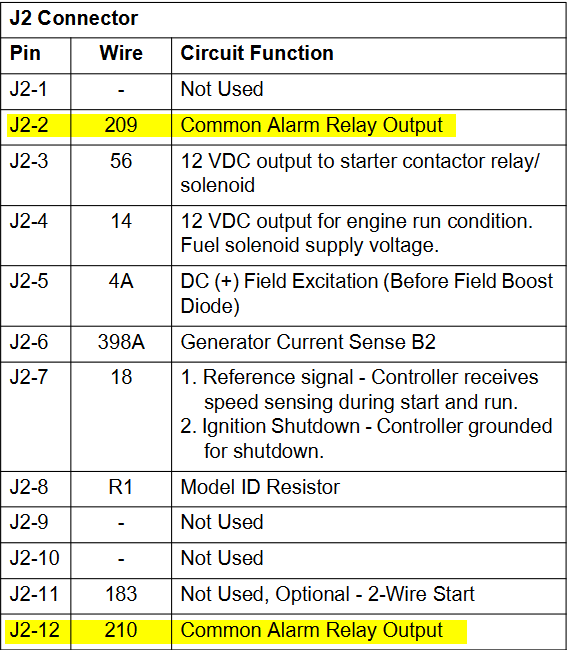

Evolution 1.0 - J2 Connector detail

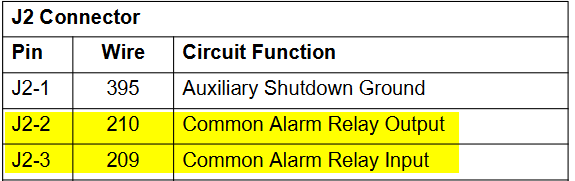

Evolution 2.0—J2 Connector Detail

Equipment Connection Details

Generac Gateway Side Terminations

Description

Harness Wire Color

Equipment Side Terminations

+

DC+

Red

B+

-

DC-

Black

B-

Pin 15

Engine Running

Purple

Fuel Solenoid+ (Red)
Wire 14

Pin 17

Common Alarm

White

Terminal/Wire 210
(jump B+ to
Terminal/Wire 209)

Harness Relay #1

COM

Blue

Remote Start—178

N/O

White / Blue

Remote Start—183

Gateway Connection Ports

Gateway Right Panel—GPS antenna and harness I/O connections
Gateway Left Panel—Cellular antenna, power, serial communication ports, and SIM card slot
