This topic is the install guide for the aftermarket gateway (part# G0097460) with the universal harness (part# A0006648426) when utilizing the Basler DGC-2020 Digital Genset Controller with a RS485 connection.
Generac Link-Site Deployment Controller Selection:

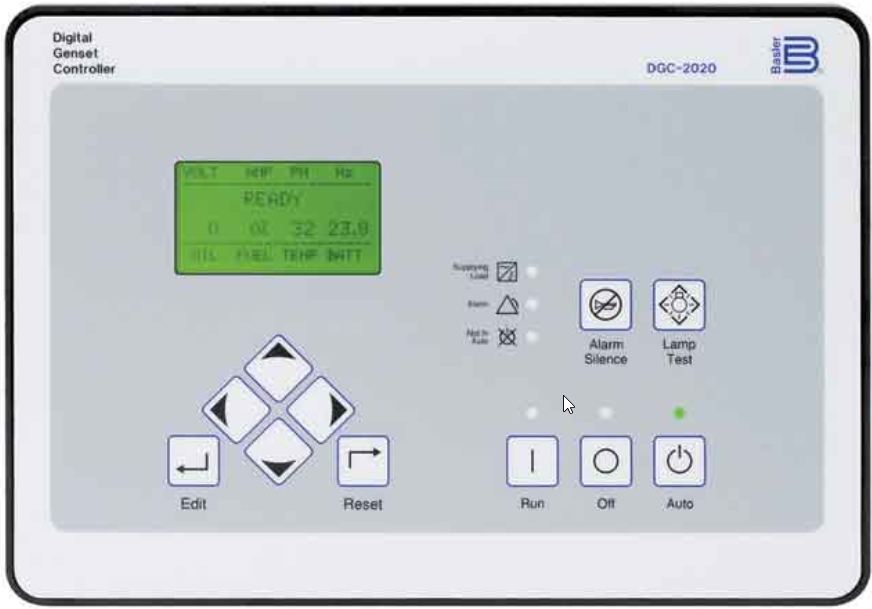

Basler DGC2020-RS485
Modbus Communication Settings and Notes
Settings should match values provided in this table.
|
Address: 125 |
|
Baud Rate: 9600 |
If different settings are required, please contact Support.

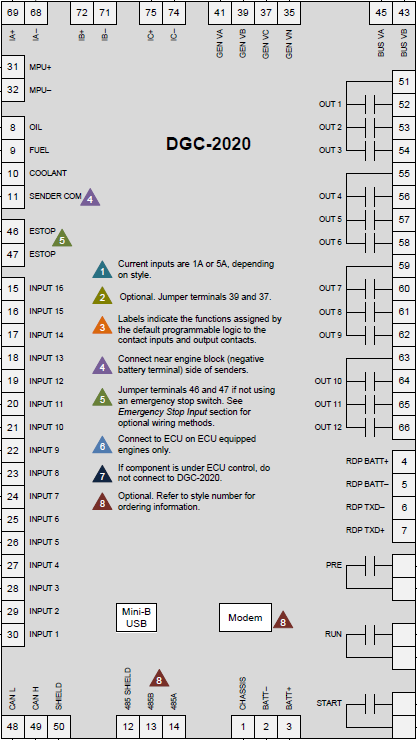

Equipment Connection Details
Generac Gateway Side Terminations
|
Description
|
Harness Wire Color
|
Equipment Side Terminations
|
|---|---|---|---|
|
+ |
DC+ |
Red |
Terminal 3 |
|
- |
DC- |
Black |
Terminal 2 |
|
A2 |
Data + |
Blue / White |
Terminal 13 |
|
B2 |
Data - |
White / Blue |
Terminal 14 |
|
GND |
Data GND |
White / Green |
Terminal 12 |
|
Harness Relay #1 |
COM |
Blue |
2-Wire Start |
|
N/O |
White / Blue |
Gateway Connection Ports
