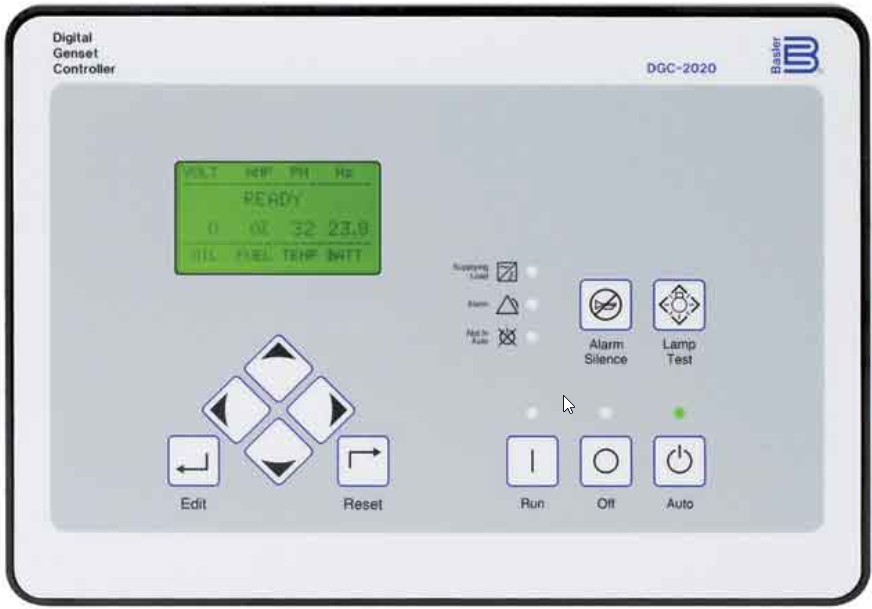

This topic is the install guide for the aftermarket gateway (part# G0097460) with the universal harness (part# A0006648426) when utilizing the Basler DGC-2020 Digital Genset Controller with a hard-wired connection.
Generac Link-Site Deployment Controller Selection:
Hardwired-EC312

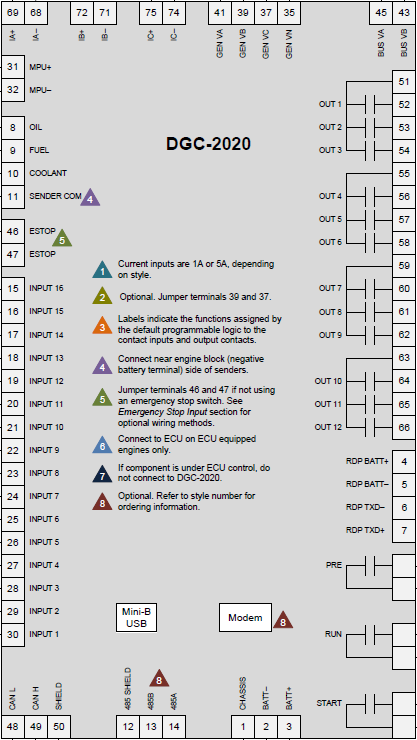

Equipment Connection Details
Generac Gateway Side Terminations
|
Description
|
Harness Wire Color
|
Equipment Side Terminations
|
|---|---|---|---|
|
+ |
DC+ |
Red |
Terminal 3 |
|
- |
DC- |
Black |
Terminal 2 |
|
Pin 15 |
Engine Running |
Purple |
RUN Terminal |
|
Pin 16 |
Not In Auto |
Green |
Terminal 53 (Jump DC+ to Terminal 51) |
|
Pin 17 |
Common Alarm |
White |
Terminal 56
|
|
Harness Relay #1 |
COM |
Blue |
2-Wire Start Input |
|
N/O |
White / Blue |
Alarm terminations assume factory default configurations for OUT1 = Not In Auto, OUT2 = Global Alarm, and OUT3 = Global Pre-Alarm.
Gateway Connection Ports
