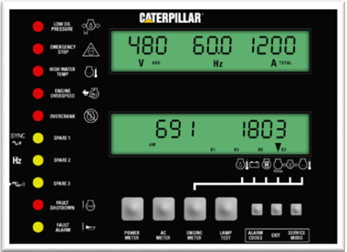

This topic is the install guide for the after-market gateway (part# G0097460) with the universal harness (part# A0006648426) when utilizing a CAT® EMCP II and II+ control panel.
Generac Link-Site Deployment Controller Selection:
Hardwired-EC312

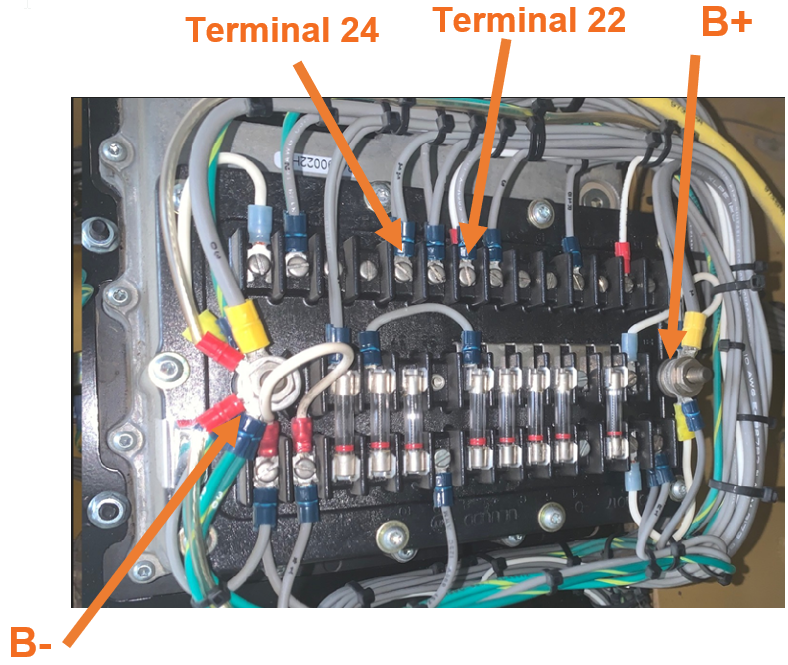

Equipment Connection Details
Generac Gateway Side Terminations
|
Description
|
Harness Wire Color
|
Equipment Side Terminations
|
|---|---|---|---|
|
+ |
DC+ |
Red |
B+ |
|
- |
DC- |
Black |
B- |
|
Pin 15 |
Engine Running |
Purple |
Terminal 24 |
|
Pin 16 |
Not In Auto |
Green |
HOA Switch - Terminal 7 |
|
Pin 17 |
Common Alarm |
White |
Terminal 22 |
|
Harness Relay #1 |
COM |
Blue |
2-Wire Start—Terminal 2 |
|
N/O |
White / Blue |
2-Wire Start—Terminal 14 |
Gateway Connection Ports
