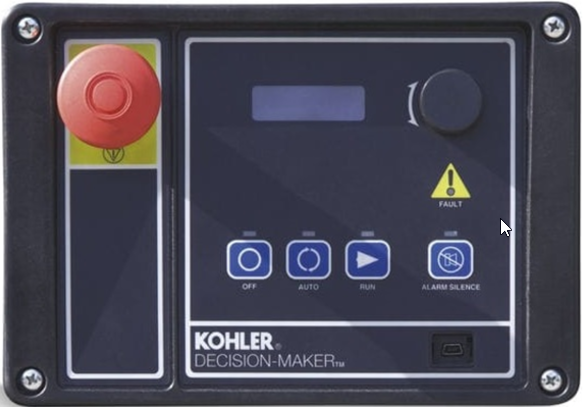

This topic is the install guide for the after-market gateway (part# A0009887841) with the GL899-PARTIAL COMM HARNESS (part# A0009887770) and the GL899-PARTIAL RETROFIT HARNESS (part# A0009887772) when utilizing the Kohler Decision-Maker® 3000 APM402 Controller.
Generac Link-Site Deployment Controller Selection:
Kohler APM402 (DEC 3000)-RS485-DSE899
Modbus Communication Settings and Notes
Settings should match values provided in this table.
|
Address: 1 |
|
Baud Rate: 19200 |
If different settings are required, please contact Support.
Generac Gateway Side Terminations
|
Description
|
Harness Wire Color
|
Equipment Side Terminations
|
|---|---|---|---|
|
2 |
DC+ |
A0009887772 Red |
42A (B+) |
|
1 |
DC- |
A0009887772 Black |
Terminal 2 (B-) |
|
8 |
Data + |
A0009887770 Orange / White |
P21-2 + |
|
9 |
Data - |
A0009887770 White / Orange |
P21-3 - |
|
6 |
Not in Auto |
A0009887772 Purple |
*P29-NO
|
|
7 |
Common Alarm |
A0009887772 Green |
*TB2-NO
|
|
10 |
Data GND |
A0009887770 Blue/ White |
P21-1 GND |
|

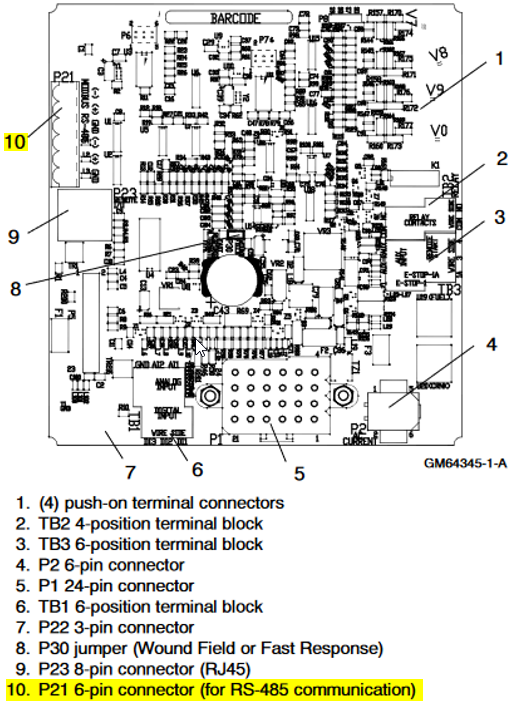

Harness Relay #1 |
COM |
A0009887772 Blue |
TB3-3 |
|
N/O |
A0009887772 White / Blue |
TB3-4 |
*Default configuration for alarms are for Common Alarm on White wire and Not in Auto on Green wire. If monitoring other statuses is required, please contact Support.
Gateway Connection Ports
|
Pin |
Connector |
Description |
|
1 |
A |
Plant Supply –ve |
|
2 |
Plant Supply +ve |
|
|
3 |
Digital Output A |
|
|
4 |
Digital Output B |
|
|
5 |
Flexible Sender Common |
|
|
6 |
Flexible Sender A |
|
|
7 |
Flexible Sender B |
|
|
1 |
B
|
RS485 A |
|
2 |
RS485 B |
|
|
3 |
RS485 Screen |
|
|
4 |
CAN H |
|
|
5 |
CAN L |
|
|
6 |
CAN Screen |
Check out our knowledge base and support center for information on any technical questions.
