Generac Power Zone 410 Controller (V3)

This topic is the install guide for the after-market gateway (part# A0009887841) with the GL899-PARTIAL POWER HARNESS (part# A0009887769), GL899-PARTIAL COMM HARNESS (part# A0009887770) utilizing the Generac PowerZone® 410 Controller.

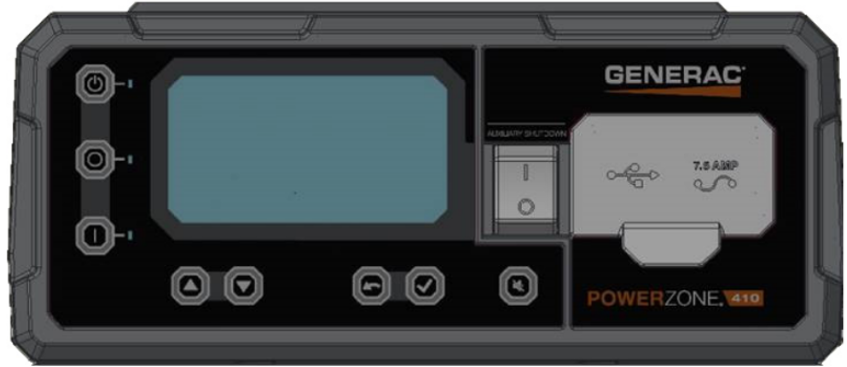

Generac Power Zone 410 Controller Display

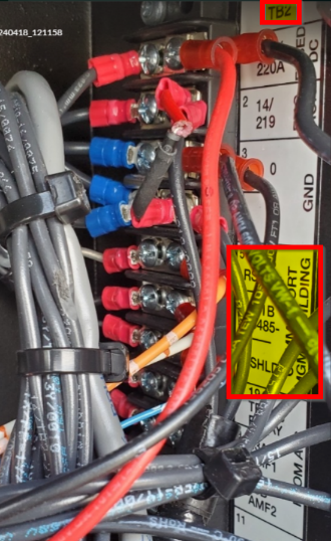

Power Zone 410 Wiring and Connections

Modbus Communication Settings and Notes

Settings should correspond to the values provided in this table.

Address:  157

Data Bit: 8

Baud Rate: 9600

Stop Bit: 1

Parity: None

If different settings are required, please contact Support.

From the control panel as depicted in the schematic in this section, follow the steps provided here.

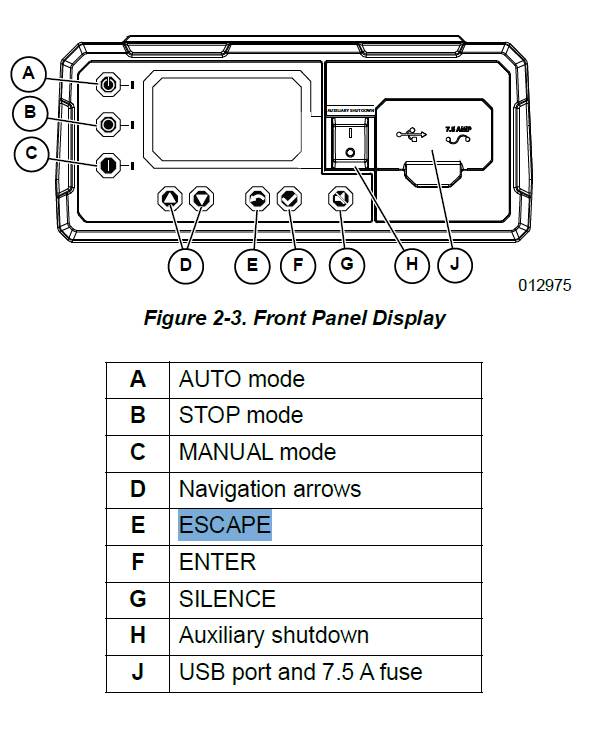

Front Panel Display
  1. RS485 slave port configuration can be reached through Dealer Menu by entering the Dealer Code.

  2. Edit Settings>Config RS485 Slave.

Equipment Connection Details

Generac Gateway Side Terminations

Description

Harness Wire Color

Equipment Side Terminations

2

DC+

A0009887769 Red

B+

1

DC-

A0009887769 Black

B-

8

Data +

A0009887770 Orange / White

TB2—RS485+

9

Data -

A0009887770 White / Orange

TB2—RS485-

10

Data GND

A0009887770 Blue/ White

TB2—SHLD

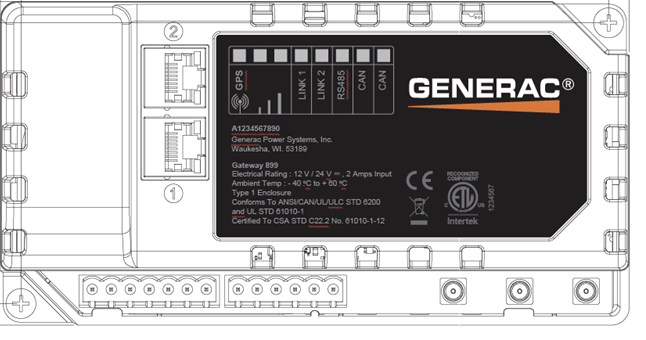

Gateway Connection Ports


Pin

Connector

Description

1

A

Plant Supply –ve

2

Plant Supply +ve

3

Digital Output A

4

Digital Output B

5

Flexible Sender Common

6

Flexible Sender A

7

Flexible Sender B

1

B



RS485 A

2

RS485 B

3

RS485 Screen

4

CAN H

5

CAN L

6

CAN Screen
