Generac Evolution (Air Cooled)
This topic is the install guide for the after-market gateway (part# G0097460) with the universal harness (part# A0006648426) utilizing the Generac Evolution (Air Cooled) control panel.

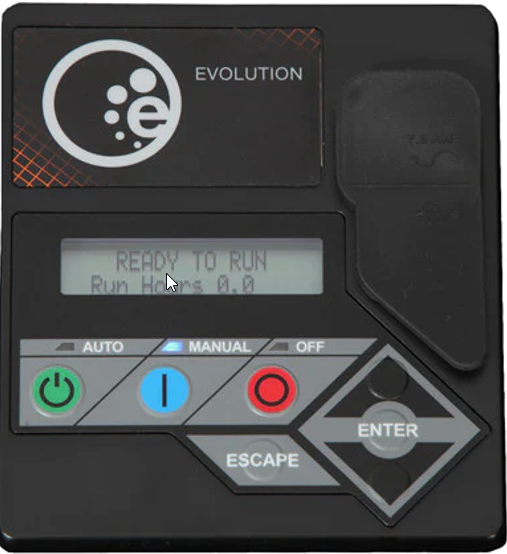

Panel Display for Evolution (Air Cooled) Control Panel

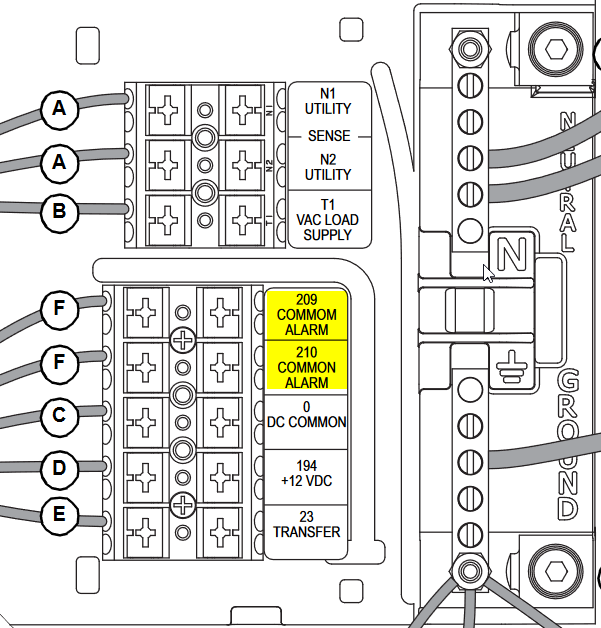

Evolution Control Wiring (60Hz) 2016 and Older (Behind Control Board)

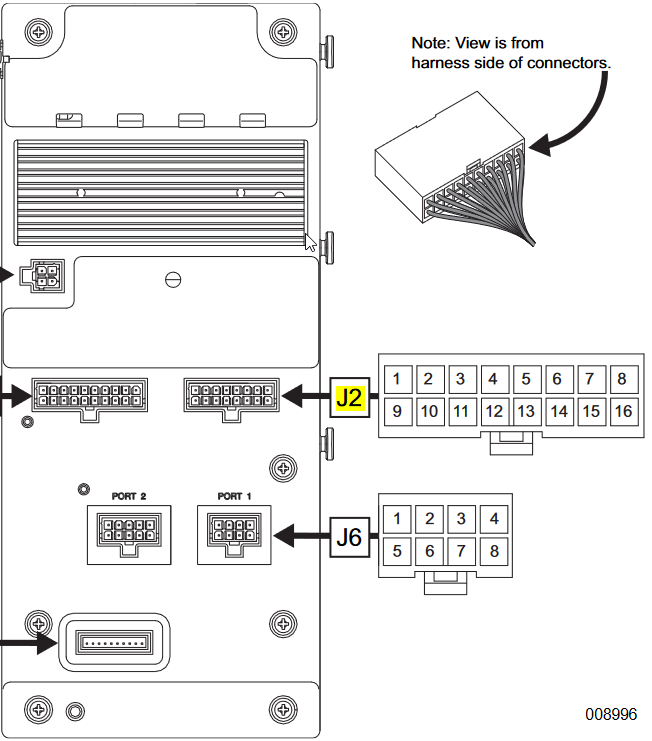

Evolution 1.0 and 2.0 Controller Connections

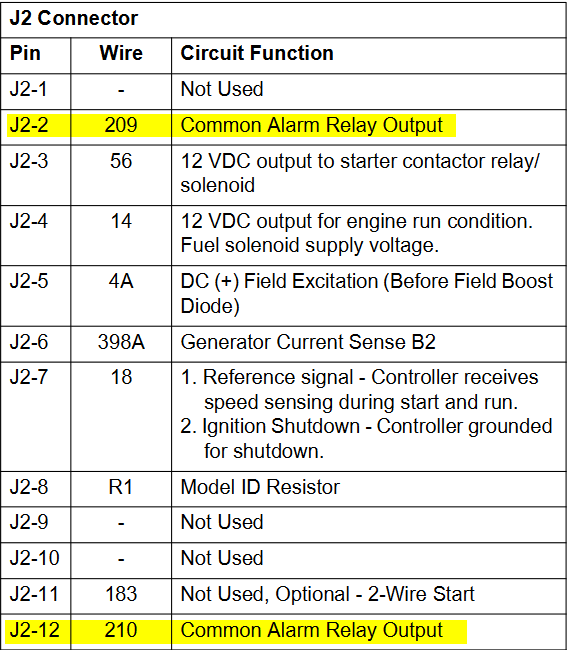

Evolution 1.0 - J2 Connector detail

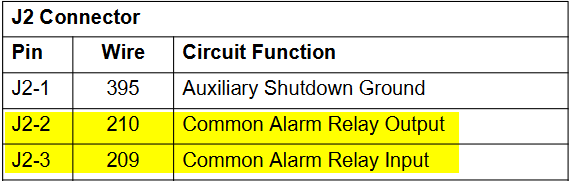

Evolution 2.0—J2 Connector Detail
Equipment Connection Details
Generac Gateway Side Terminations | Description | Harness Wire Color | Equipment Side Terminations |
|---|---|---|---|
+ | DC+ | Red | B+ |
- | DC- | Black | B- |
Pin 15 | Engine Running | Purple | Fuel Solenoid+ (Red) |
Pin 17 | Common Alarm | White | Terminal/Wire 210 |
Harness Relay #1 | COM | Blue | Remote Start—178 |
N/O | White / Blue | Remote Start—183 |
Gateway Connection Ports
Gateway Right Panel—GPS antenna and harness I/O connections
Gateway Left Panel—Cellular antenna, power, serial communication ports, and SIM card slot
