PCC 2.X/3.X (2300/3300)

This topic is the install guide for the after-market gateway (part# G0097460) with the universal harness (part# A0006648426) when utilizing Cummins PCC 2.X PowerCommand® control systems.

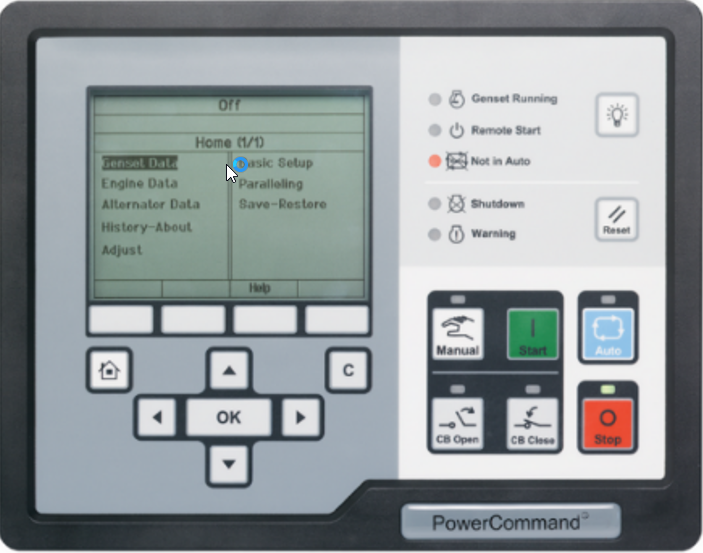

PowerCommand Control (PCC) 2.X HMI

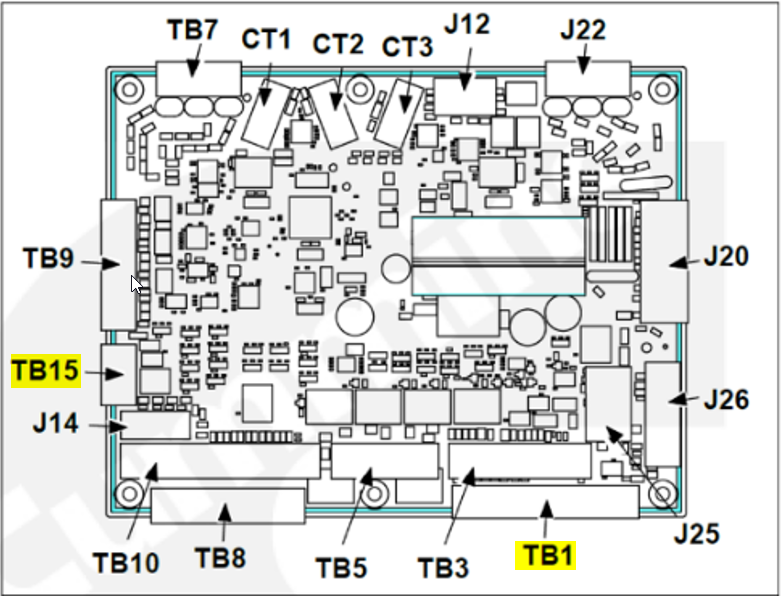

2300 Control Board—Modbus RS485 connections at TB15, power and remote start made at TB1

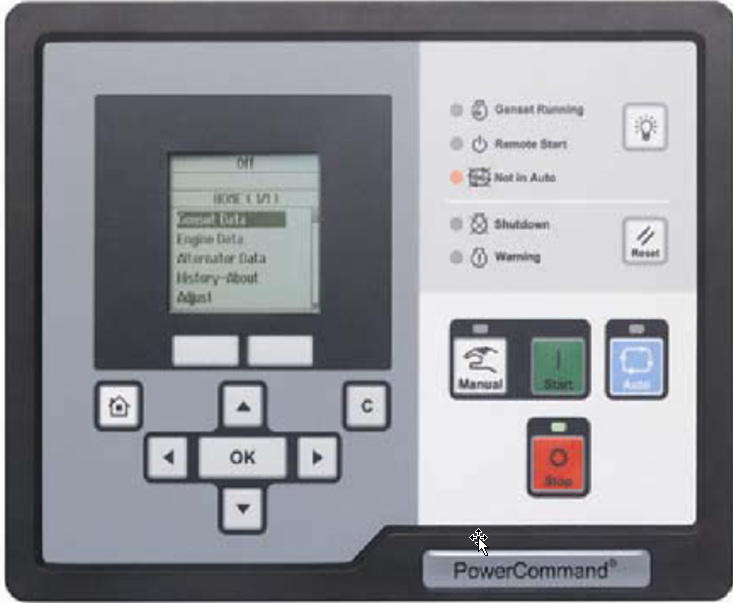

PCC 3.X HMI

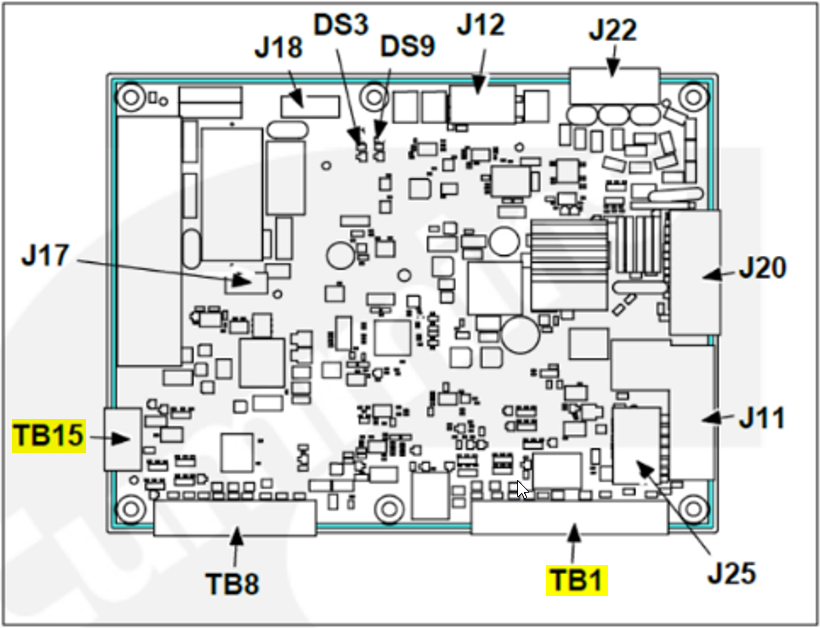

3300 Control Board—Modbus RS485 connections at TB15, power and remote start made at TB1

Modbus Communication Settings and Notes

Settings should match values provided in this table.

Address:  2

Baud Rate: 9600

If different settings are required, please contact Support.

Generac Gateway Side Terminations

Description

Harness Wire Color

Equipment Side Terminations

+

DC+

Red

TB1-5

-

DC-

Black

Ground Terminal

A2

Data +

Blue / White

TB15-3

B2

Data -

White / Blue

TB15-4

GND

Data GND

White / Green

TB15-1

Harness Relay #1

COM

Blue

TB1-10

N/O

White / Blue

TB1-11

Gateway Connection Ports


Gateway Right Panel—GPS antenna and harness I/O connections


Gateway Left Panel—Cellular antenna, power, serial communication ports, and SIM card slot
