Basler DGC2020 Controller via RS485
This topic is the install guide for the aftermarket gateway (part# G0097460) with the universal harness (part# A0006648426) when utilizing the Basler DGC-2020 Digital Genset Controller with a RS485 connection.

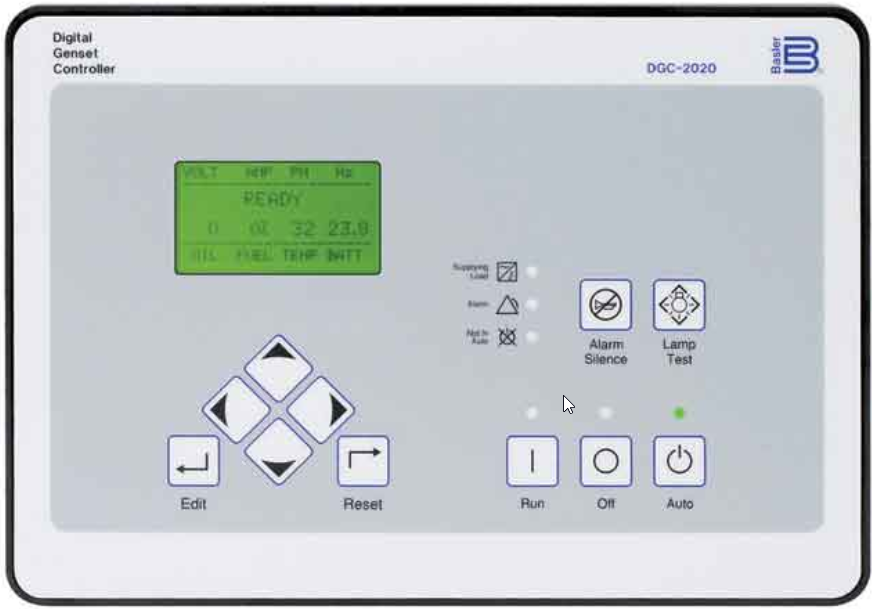

DGC-2020 Digital Genset Controller

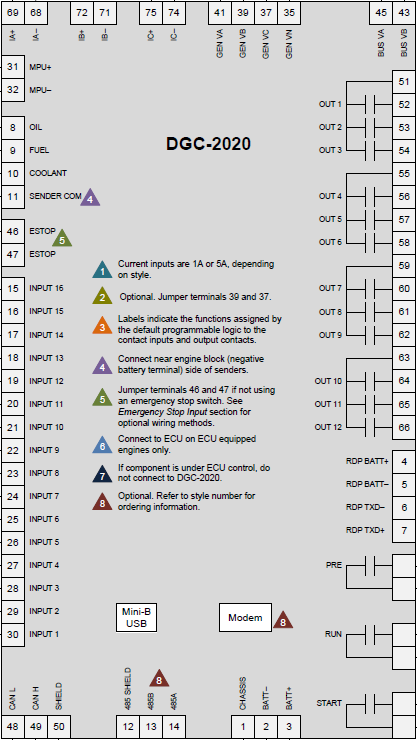

DGC2020 Control Board Connections
Modbus Communication Settings and Notes
Settings should match values provided in this table.
Address: 125 |
Baud Rate: 9600 |
If different settings are required, please contact Support.
Equipment Connection Details
Generac Gateway Side Terminations | Description | Harness Wire Color | Equipment Side Terminations |
|---|---|---|---|
+ | DC+ | Red | Terminal 3 |
- | DC- | Black | Terminal 2 |
A2 | Data + | Blue / White | Terminal 13 |
B2 | Data - | White / Blue | Terminal 14 |
GND | Data GND | White / Green | Terminal 12 |
Harness Relay #1 | COM | Blue | 2-Wire Start |
N/O | White / Blue |
Gateway Connection Ports
Gateway Right Panel—GPS antenna and harness I/O connections
Gateway Left Panel—Cellular antenna, power, serial communication ports, and SIM card slot
