APG Ultrasonic Fuel Sensor

This topic is the install guide for the V2 after-market gateway (part# G0097460) and connecting to the APG Ultrasonic Fuel Sensor (BP-UFS1).

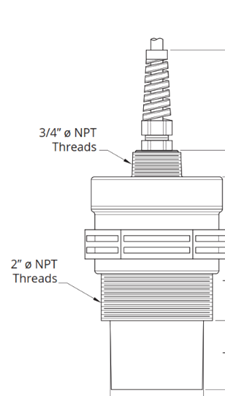

Ultrasonic Fuel Sensor

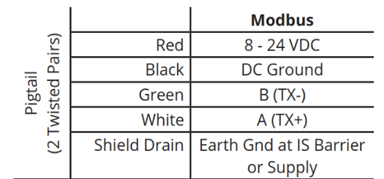

Wiring Pigtail

Equipment Connection Details

Generac Gateway Side Terminations

Description

Harness Wire Color

Sensor Side Terminations

+

DC+

Red

Red

-

DC-

Black

Black / SHLD

A2

Data+

Blue / White

White

B2

Data-

White / Blue

Green

Gateway Connection Ports


Gateway Right Panel—GPS antenna and harness I/O connections


Gateway Left Panel—Cellular antenna, power, serial communication ports, and SIM card slot
